Product Video
Product Parameter
| Product name | Stainless Steel H Steel |
| Material | Q235B/SM490/SS400/Q345B/Q235/Q345/SS400/ST372/ST52/Q420/Q460/S235JR/S275JR/S355JR,etc |
| Standard | JIS, AiSi, ASTM, GB, DIN, EN |
| Size | Length: 1000-15000mm,according to customer requirements Thickness: web plate: 6-32mm,wing plate: 6-40mm Height: 200-1200mm |
| Surface | Painted,galvanized or as required |
| Technical | Hot Rolled IPE Beam, Welded H-beam |
| Certification | CE ,ISO,SGS,ETC |
| MOQ | 25 TONS |
| Payment | TT,LC,ETC |
| Delivery time | Usually 7 days, depending on the quantity |
| Packing | Standard seaworthy package or as the customer's requirements. |
| Application | 1. workshop, warehouse, plant.2. Steel web frame structure.3. Steel H-column and steel H-beam. 4. Portal frame products.5. High rise building project.6. Others steel structure buildings. |
| H Beam | |||||
| SIZE | GB | JIS | SIZE | GB | JIS |
| 100*100*6*8 | 17.2 | 16.9 | 388*402*15*15 | 141 | 140 |
| 125*125*6.5*9 | 23.8 | 23.6 | 390*300*10*16 | 107 | 105 |
| 148*100*6*9 | 21.4 | 21.1 | 394*398*11*18 | 147 | 147 |
| 150*75*5*7 | 14.3 | 14 | 396*199*7*11 | 56.7 | 56.1 |
| 150*150*7*10 | 31.9 | 31.1 | 400*200*8*13 | 66 | 65.4 |
| 175*90*5*8 | 18.2 | 18 | 400*150*8*13 | 55.8 | 55.2 |
| 175*175*7.5*11 | 40.3 | 40.4 | 400*400*13*21 | 172 | 172 |
| 194*150*6*9 | 31.2 | 29.9 | 414*405*18*28 | 233 | 232 |
| 198*99*4.5*7 | 18.5 | 17.8 | 414*202*10*20 | 94.5 | 93.9 |
| 200*100*5.5*8 | 21.7 | 20.9 | 440*300*11*18 | 124 | 121 |
| 200*200*8*12 | 50.5 | 49.9 | 446*199*8*12 | 66.7 | 65.1 |
| 200*204*12*12 | 56.7 | 56.2 | 450*200*9*14 | 76.5 | 74.9 |
| 244*175*7*11 | 44.1 | 43.6 | 482*300*11*15 | 115 | 111 |
| 248*124*5*8 | 25.8 | 25.1 | 488*300*11*18 | 129 | 125 |
| 250*125*6*9 | 29.7 | 29 | 496*199*9*14 | 79.5 | 77.9 |
| 250*250*9*14 | 72.4 | 71.8 | 500*200*10*16 | 89.6 | 88.2 |
| 250*255*14*14 | 82.2 | 81.6 | 506*201*11*19 | 103 | 102 |
| 294*200*8*12 | 57.3 | 55.8 | 582*300*12*17 | 137 | 133 |
| 294*302*12*12 | 85 | 83.4 | 588*300*12*20 | 151 | 147 |
| 298*149*5.5*8 | 32.6 | 32 | 594*302*14*23 | 175 | 170 |
| 298*201*9*14 | 65.9 | 64.4 | 596*199*10*15 | 95.1 | 92.5 |
| 300*150*6.5*9 | 37.3 | 36.7 | 600*200*11*17 | 106 | 103 |
| 300*300*10*15 | 94.5 | 93 | 600*304*16*26 | 198 | 194 |
| 300*305*15*15 | 106 | 105 | 606*201*12*20 | 120 | 118 |
| 340*250*9*14 | 79.7 | 78.1 | 692*300*13*20 | 166 | 163 |
| 344*348*10*16 | 115 | 113 | 700*300*13*24 | 185 | 182 |
| 346*174*6*9 | 41.8 | 41.2 | 792*300*14*22 | 191 | 188 |
| 350*175*7*11 | 50 | 49.4 | 800*300*14*26 | 210 | 207 |
| 350*350*12*19 | 137 | 135 | 900*300*16*28 | 243 | 240 |
| Grado | Chemical Compo | sition(%) | Mechanical Propert | ics | ||||
| C= | Si= | Mn= | P= | S= | Tensile Strenth (Mpn) |
Yield Stress (Mpa) |
Elongation (%) |
|
| Q235B | 0.20 | 0.28 | 0.7 | 0.025 | 0.025 | 380-450 | 270-300 | 28 |
| Q345B | 0.20 | 0.50 | 1.6 | 0.034 | 0.025 | 550-600 | 380-450 | 25 |
| Q355B | 0.24 | 0.55 | 1.6 | 0.035 | 0.025 | 550-630 | 380-450 | 21 |

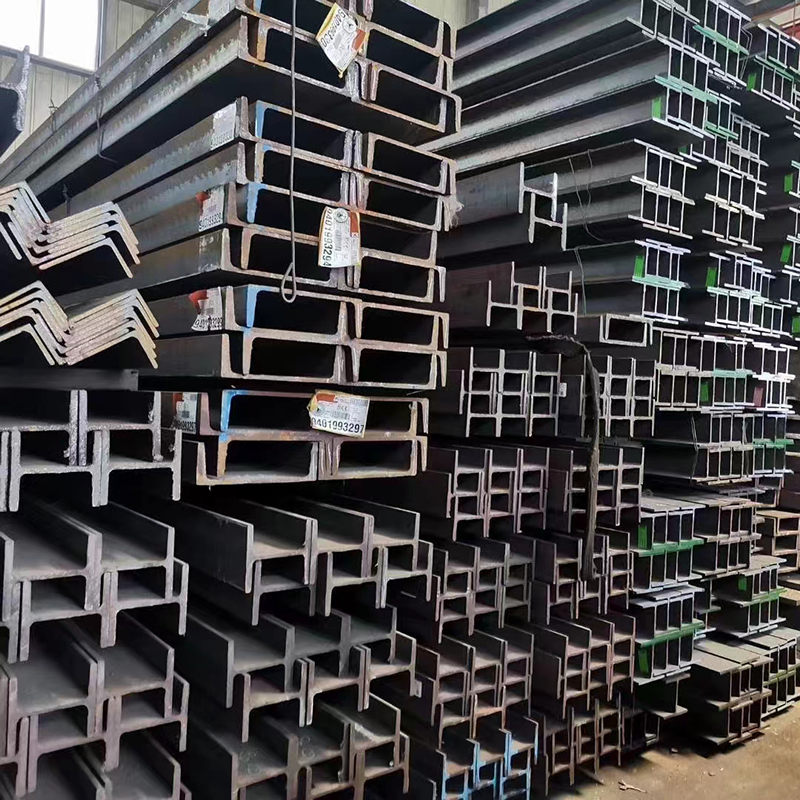

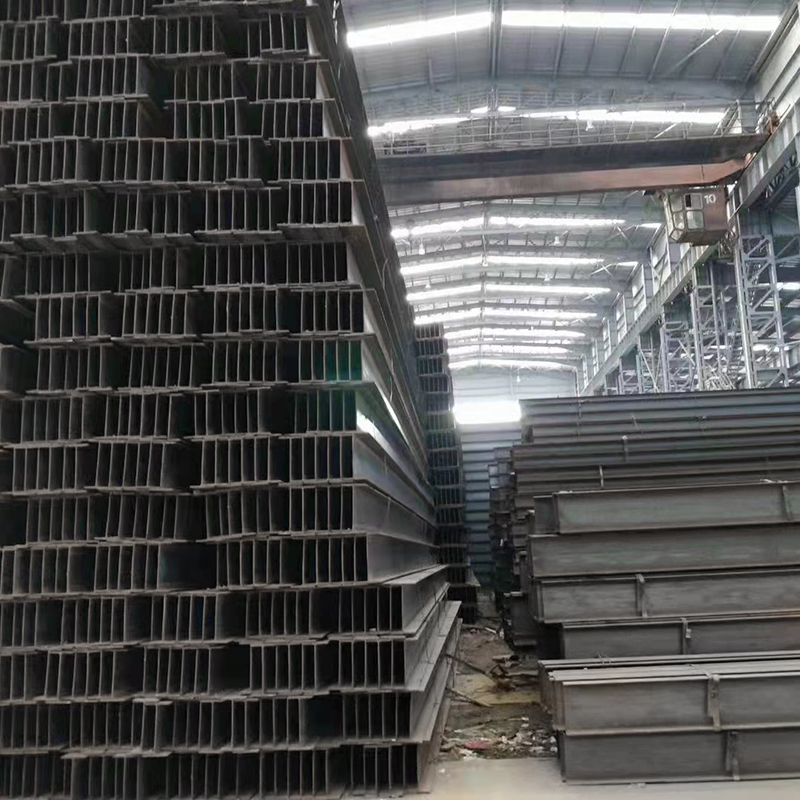

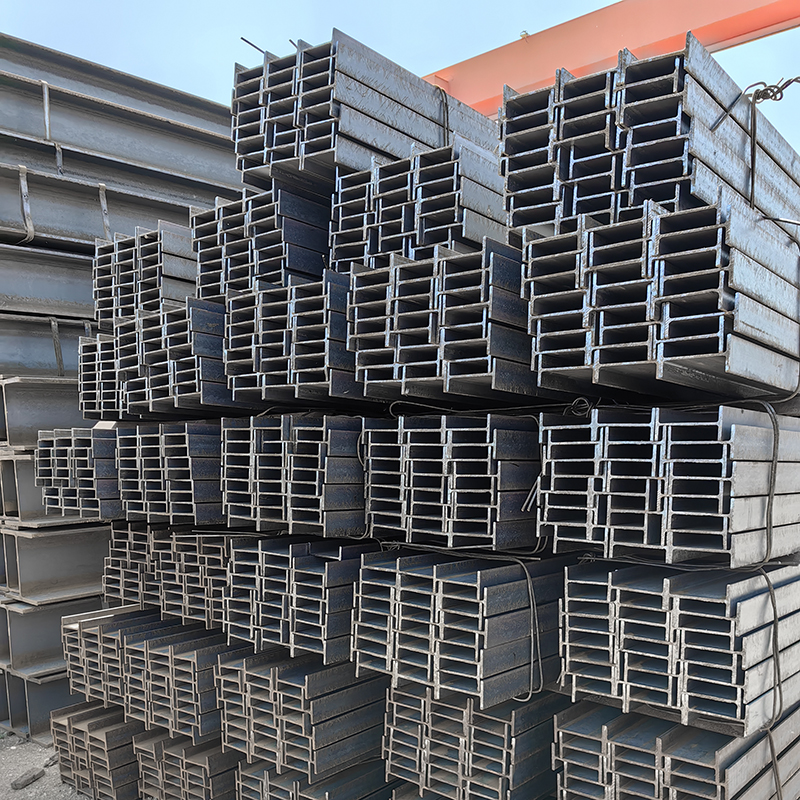

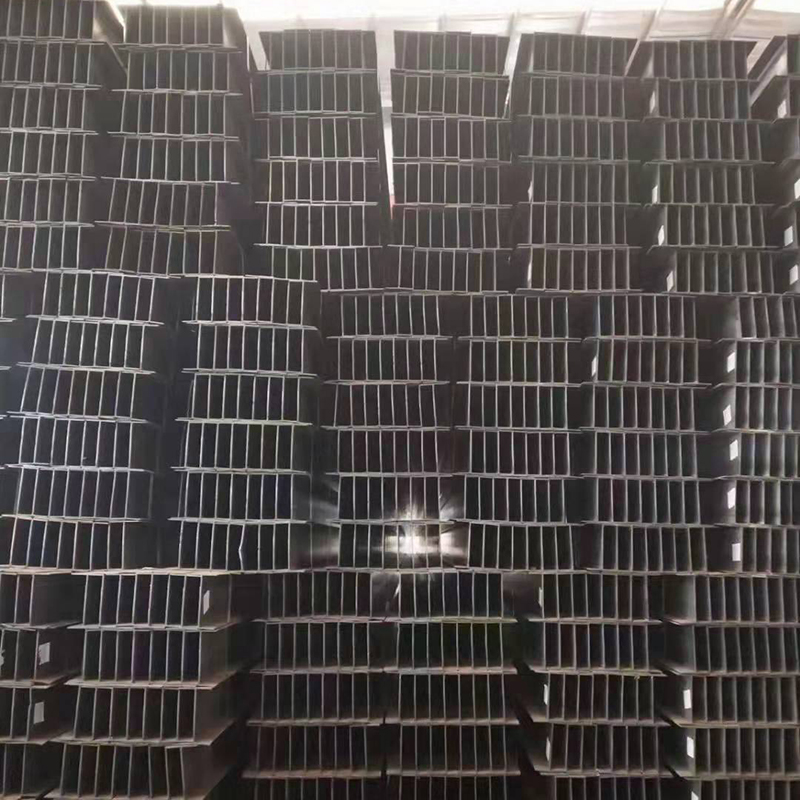

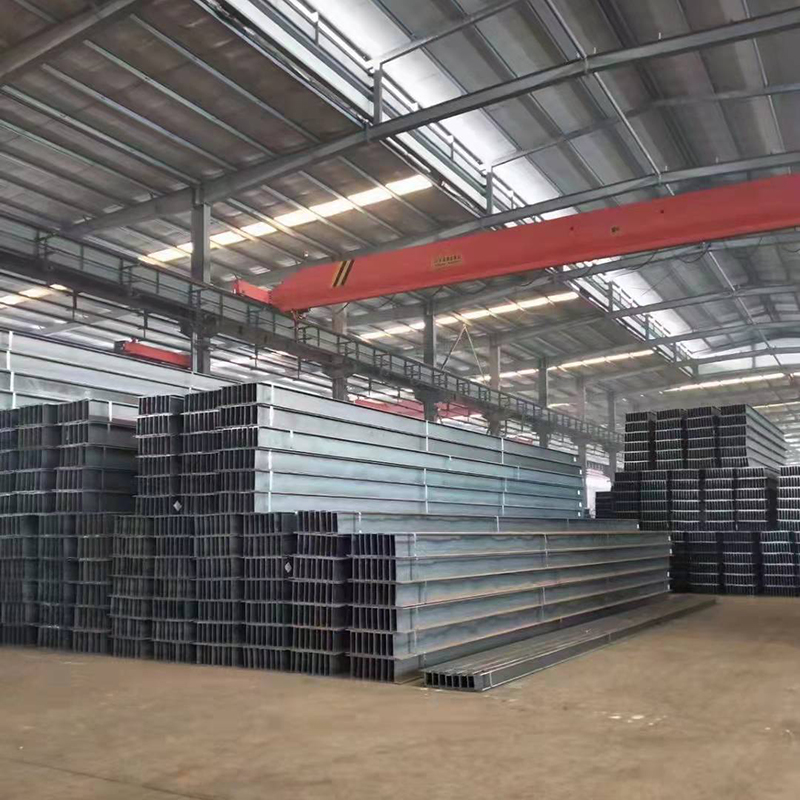

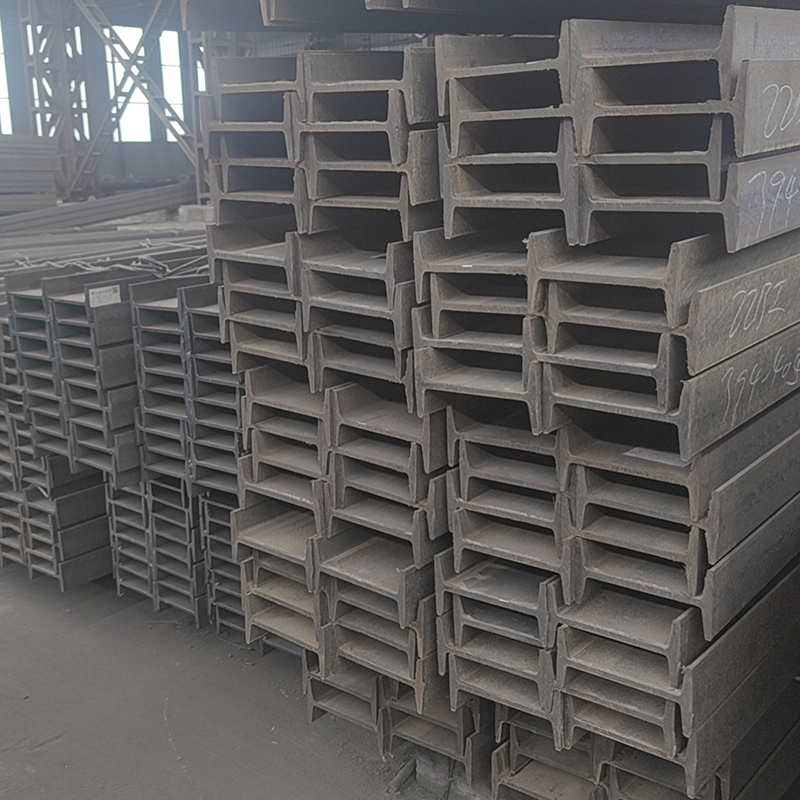

Product Show
Stainless steel H-beam has excellent corrosion resistance and can maintain stable performance in various harsh environments. In addition, it has high strength and good processing performance, and can meet the needs of various complex structures. Besides, its high surface quality and good decorative performance can improve the grade and beauty of construction and decoration. Finally, stainless steel H-beam has strong plasticity and can be used to produce parts of various shapes through a variety of processing methods to meet the needs of different industries. Stainless steel H-beam plays an important role in construction, decoration, machinery, automobiles, ships and other fields with its excellent performance and wide range of applications.
Product features
Product Advantage
1. Stable section size, strong bearing capacity
The section size of H-shaped steel is regular, the moment of inertia and resistance are large, and it has good mechanical properties and can bear greater weight.
2. Superior bending resistance
Because of its special section structure, H-beam steel has good bending resistance, which can effectively reduce the deformation of structural parts in the process of use.
3. Easy connection
The flange plate of H-shaped steel is wide, and it can be welded and riveted with other types of steel structural parts, making the structural connection more convenient.
4. Good processing performance
H-beam steel has good machining performance, can be processed by cutting, grinding, drilling and other ways, easy to process into different shapes and sizes.
5. High material utilization rate
Due to its regular section size and high material utilization rate, H-shaped steel can greatly reduce manufacturing costs.
Application
1. workshop, warehouse, plant
2. Steel web frame structure
3. Steel H-column and steel H-beam
4. Portal frame products
5. High rise building project
6. Others steel structure buildings
-- H beams can be used in the industry and construction.
-- H beams also can be used in the large bridge.
.- The industries of trains, automobiles and tractors also will use the H beam.
-- Frame structure in marine and mechanical area.

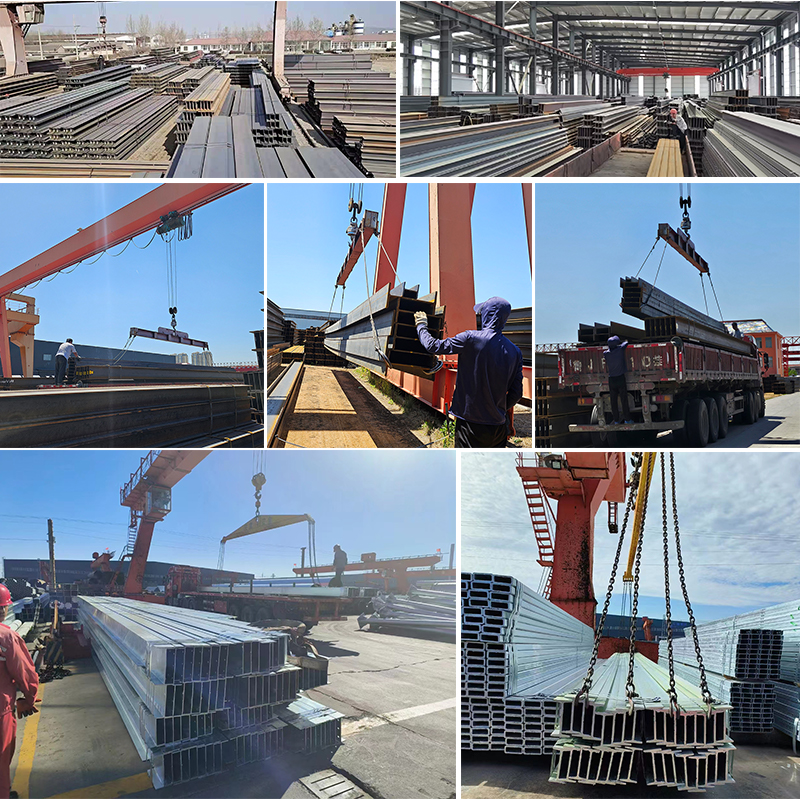

Packing & Delivery
| Packing | When each plate weight is under 1 tons, it will be in bundle with steel strips 2-4. When each plate weight is over 1 ton, it will be piece by piece. |
| 20 feet container contains dimension | Width under 2300mm, length under 6000mm |
| 40 feet container contains dimension | Width under 2300mm, length under 12000mm |
| By bulk vessel | Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
Standard export waterproof package, suit for all kinds of transport, or as required.
Customer Feedback
FAQ
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected byRUNHAIpiece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, you could place an order with trade assurance which could secure your payment.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,theFacebook,Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
