Product Parameter
| Product name |
Galvalume Steel Sheet |
| Grade |
Dx51D,Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540,SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Width | 600mm~1500mm or according to customer's special request |
| Thickness | 0.12mm~6.00mm or customized |
| Length | 0.6m~12M or customized |
| Surface Treatment | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized |
| Surface Structure |
Normal spangle coating(NS),minimized spangle coating(MS),spangle-free(FS), Spangle:Small/ Regular/ Big/ Zero(no) |
| Type of Coating |
Hot Dipped Galvanized Steel(HDGI)/Electro-Galvanised Steel(EGI) |
| Zinc coated | 30g-275g/m2 |
| Technique | hot rolled ,Cold rolled |
| MOQ | 25 TONS |
| Payment terms | TT,LC,ETC |
| Delivery time | Usually 7 days, depending on the quantity |
| Export packing | Standard Export Seaworthy Package.Suit for all kinds of transport,or as require |
| Application |
Hot dip galvanized steel is widely used in light industry, household applicances, automotive and construction industry. For various types of industrial and civil construction industry, light steel keel, building leveI board, corrugated board, roller shutter doors. |
| bse metal type | Grade | CHEMICAL COMPOSITION % | |||
| C | Si | Mn | P | ||
|
cold rolled steel sheet |
DC51D+Z (St01Z, St02Z, St03Z), DC51D+ZF |
≤0.10 | - | ≤0.50 | ≤0.035 |
| DC52D+Z (St04Z), DC52D+ZF | ≤0.08 | - | ≤0.45 | ≤0.030 | |
| DC53D+Z (St05Z), DC53D+ZF | ≤0.08 | - | ≤0.40 | ≤0.030 | |
| DC54D+Z (St06Z), DC54D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | |
| DC56D+Z (St07Z), DC56D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | |
|
hot rolled steel sheet |
DD51D+Z (St01ZR, St02ZR) | ≤0.10 | - | ≤0.50 | ≤0.035 |
| DD54D+Z (St06ZR) | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | |

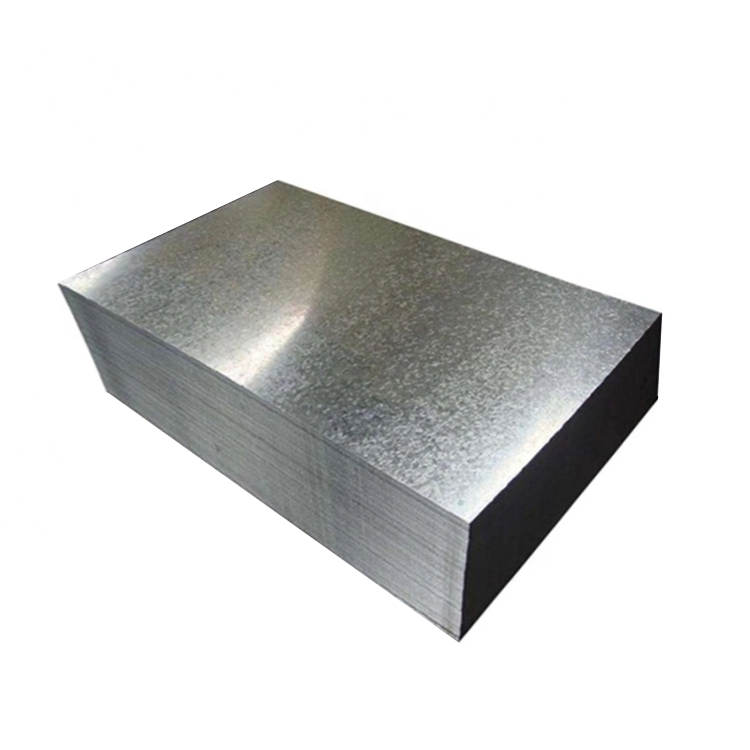

Product Show
Through electrolytic galvanizing, a uniform and dense zinc layer is finally formed on the surface of the steel, but the mechanical properties of the material are still maintained. Electrogalvanized steel is usually sold in coil or sheet form. EG coil is a kind of material that can be cut, slitted and profiled for other purposes. The steel grade of galvanized steel consists of base metal grade, galvanized (E), galvanized layer type and weight. The electro-galvanized products based on SPCC, SPCD, SPCE, SPCF and SPCG are named SECC, SECD, SECE, SECF and SECG respectively.
The production process of aluminum zinc plating is as follows:
Uncoiling-cleaning-annealing-zinc pot-cooling-air knife-straightening-post-treatment-coiling
Heat Reflection
People use it as a thermal insulation material, and its thermal reflectivity is up to twice that of galvanized steel.
Heat Resistance
Galvanized steel coil has good heat resistance and can withstand high temperatures above 300°C, which is very similar to the oxidation resistance of aluminized steel at high temperatures. Commonly used in chimney tubes, ovens, illuminators, fluorescent lampshades, etc.
Corrosion Resistance
The key to the corrosion resistance of aluminized zinc steel coil is the protective performance of aluminum. Once the zinc is worn, the aluminum forms a dense layer of aluminum oxide, preventing further internal corrosion.
Economy
The density of 55% AL-Zn is smaller than that of Zn. Therefore, when the coating weight and thickness are the same, the area of the aluminum-zinc plated steel sheet is 3% larger than that of the galvanized steel sheet.
Easy to Paint
The coating material on the aluminized zinc steel plate has excellent adhesion, and can be directly coated with tar on advertising boards and common plates without pretreatment such as weathering.
Product features
① Quality Raw Materials
High-quality raw materials areselected and meetinternational standards
② Surface Treatment
The surface of the plate issmooth, and the inner wall ofthe pipe fittings is burr-free
③ Support Customization
Support non-standardcustomization, OEM iswelcomed
④ Product Accuracy
The product has standarddimensions and tight tolerancesto meet various needstolerancesto meet various needs
| Standard | Jis 3302 | EN10327/EN10326 | ASTMA653 |
| Grade | SGCC/SGCH | DX51D+Z/DX52D+Z | CS |
| SGC340 | S22DGD+Z | SS GRADE 230 | |
| SGC400 | S25DGD+Z | SS GRADE 255 | |
| SGC440 | S28DGD+Z | SS GRADE 275 | |
| SGC490 | S32DGD+Z | SS GRADE 340 | |
| SGC570 | S35DGD+Z | SS GRADE 550 | |
| SS55DGD+Z |
Application
Galvalume Steel Plate Steet Application:Galvalume products are mainly used in construction,lightindustry,automotive,agriculture,animal husbandryand fishery and commercial industries, Householdappliances,Transportation industry.
Packing & Delivery
1.Generally package:Anti-water paper+strapped with min three strapping strips.
2.Standard exporting package: Anti-water paper and plastic+covered by iron sheet+ strapped withmin three strapping strips.
3.Excellent package:Anti-water paper and plastic film+ covered by iron sheet+ strapped with minthree strapping strips+fixed on the iron or wooden pallets by strapping strips.
Can be packaged according to customer requirements.
Customer Feedback
FAQ
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected byRUNHAIpiece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, you could place an order with trade assurance which could secure your payment.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,theFacebook,Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
