Product Video
Product Parameter
| Product name | AZ50 Galvalume Steel Coil |
| Material |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340),SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
| Standard | JIS 3302 / ASTM A653 /EN10143 AISI, ASTM, DIN, GB, JIS G3302 G3312 G3321, BS |
| Thickness | 0.12-6.00mm or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Length | By coil ,as customer requirements |
| Zinc coated | 30g-275g/m2 |
| Type of Coating | Hot Dipped Galvanized Steel |
| Spangle type | zero spangle, small spangle, regular spangle, big spangle |
| Surface treatment | chromated/non-chromated,oiled/non-oiled, anti-fingerprints |
| Coil ID | 508mm or 610mm |
| Coil Weight | 3-20 metric ton per coil |
| Technique | hot dipped. (electro also available) |
| Weight coil | 3-28 tons |
| MOQ | 28 tons |
| Payment terms | TT,LC,SGS,ETC |
| Delivery Time | Usually 7 days, depending on the quantity |
| Export packing | 3 layers. kraft paper inside + water-proof plastic film in the middle + strong steel strips covered outside ,or as require |
| Application |
Hot dip galvanized steel is widely used in light industry, household applicances, automotive and construction industry. For various types of industrial and civil construction industry, light steel keel, building level board, corrugated board, roller shutter doors. |
| bse metal type | Grade | CHEMICAL COMPOSITION % | |||
| C | Si | Mn | P | ||
|
cold rolled steel coil |
DC51D+Z (St01Z, St02Z, St03Z), DC51D+ZF |
≤0.10 | - | ≤0.50 | ≤0.035 |
| DC52D+Z (St04Z), DC52D+ZF | ≤0.08 | - | ≤0.45 | ≤0.030 | |
| DC53D+Z (St05Z), DC53D+ZF | ≤0.08 | - | ≤0.40 | ≤0.030 | |
| DC54D+Z (St06Z), DC54D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | |
| DC56D+Z (St07Z), DC56D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | |
|
hot rolled steel coil |
DD51D+Z (St01ZR, St02ZR) | ≤0.10 | - | ≤0.50 | ≤0.035 |
| DD54D+Z (St06ZR) | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | |

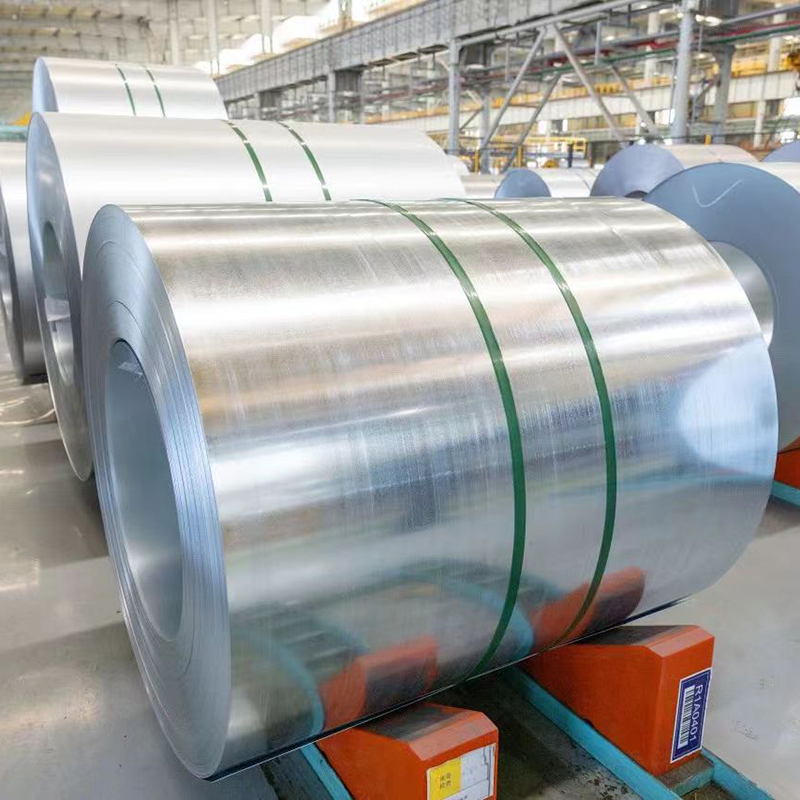

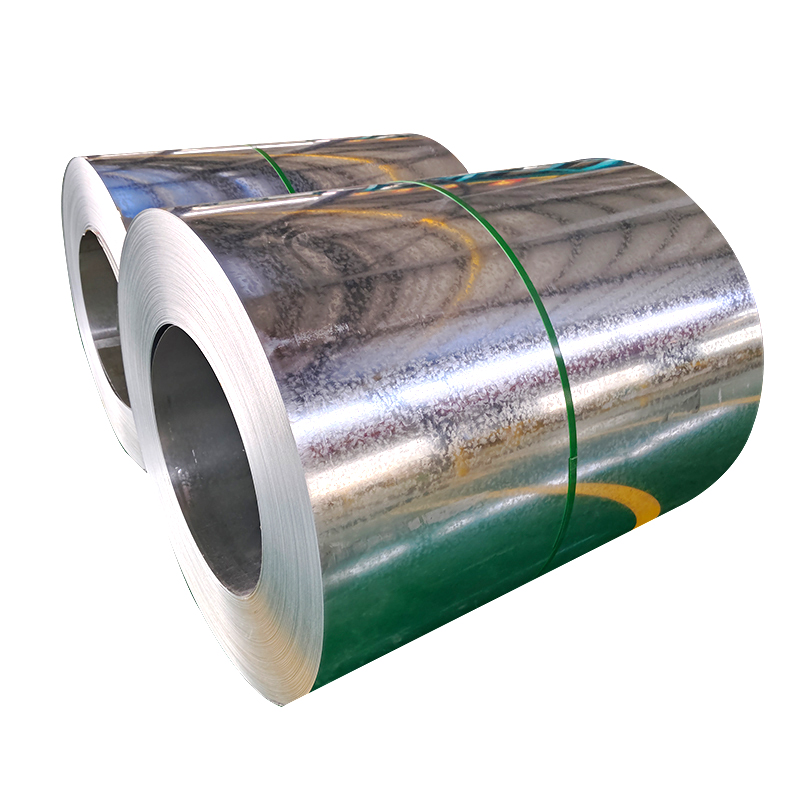

Product Show
As the surface coating of AZ50 galvalume steel coil is an alloy composed of aluminum, zinc and other trace elements, it has outstanding corrosion resistance and gradually replaces galvanized coil. The mixed structure of hot dip aluminum zinc silicon coating has its unique advantages in corrosion resistance. AZ50 aluminized zinc is a high quality corrosion resistant steel. It is made of a combination of aluminum and zinc, with an aluminum content of at least 50%. AZ50 aluminized zinc is not only suitable for the exterior of your house, but also for structural purposes and industrial applications. This alloy has many advantages, including excellent strength, impact resistance and excellent weldability.
Product features
Product Advantage
① Quality Raw Materials
High-quality raw materials areselected and meetinternational standards
② Surface Treatment
The surface of the plate issmooth, and the inner wall ofthe pipe fittings is burr-free
③ Support Customization
Support non-standardcustomization, OEM iswelcomed
④ Product Accuracy
The product has standarddimensions and tight tolerancesto meet various needstolerancesto meet various needs
| Standard | Jis 3302 | EN10327/EN10326 | ASTMA653 |
| Grade | SGCC/SGCH | DX51D+Z/DX52D+Z | CS |
| SGC340 | S22DGD+Z | SS GRADE 230 | |
| SGC400 | S25DGD+Z | SS GRADE 255 | |
| SGC440 | S28DGD+Z | SS GRADE 275 | |
| SGC490 | S32DGD+Z | SS GRADE 340 | |
| SGC570 | S35DGD+Z | SS GRADE 550 | |
| SS55DGD+Z |
Galvanized Steel Coil

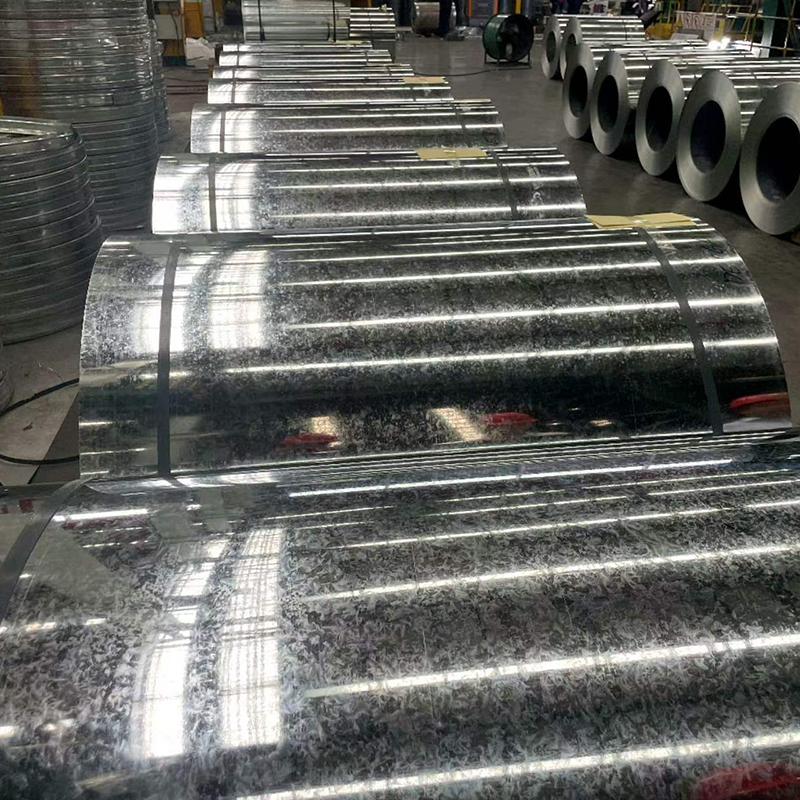

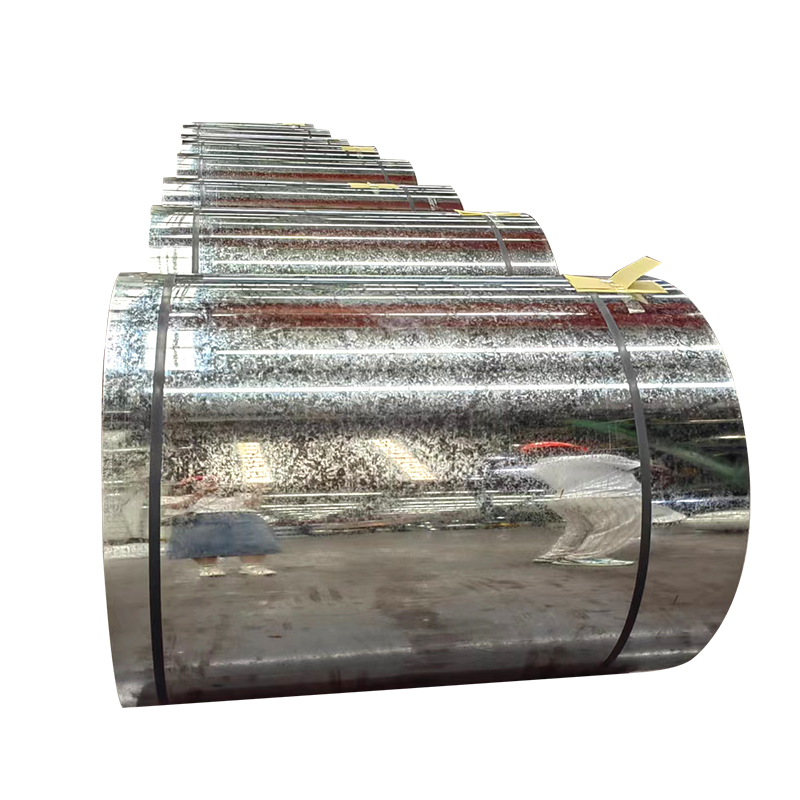

Spangle is formed during the hot-dip galvanizing process. The size, brightness, and surface of spangles mainly depend on the composition of zinc layer and the cooling method. According to the size, it includes small spangles, regular spangles, big spangles, and free spangles. They look different, but the spangles almost will not influence the quality of galvanized steel. You can choose according to your preference and purpose.
Application
(1)In the construction industry: to manufacture exterior and Interior products such as metal shingles, corrugated sheeting, sandwich panels, profiles, metallic ceilings, skirting boards, decorative panels inside heated and non- heated rooms, elevators, doors window shutters, shelves etc.
(2)In the automotive industry: to manufacture external and internal car body parts (car doors, car boots, oil filters, dashboards, windscreen wipers etc.
(3)In manufacture of home appliances, furniture, and consumer goods: metallic furniture, lighting equipment, shelves, radiators, сar doors, car boots etc.

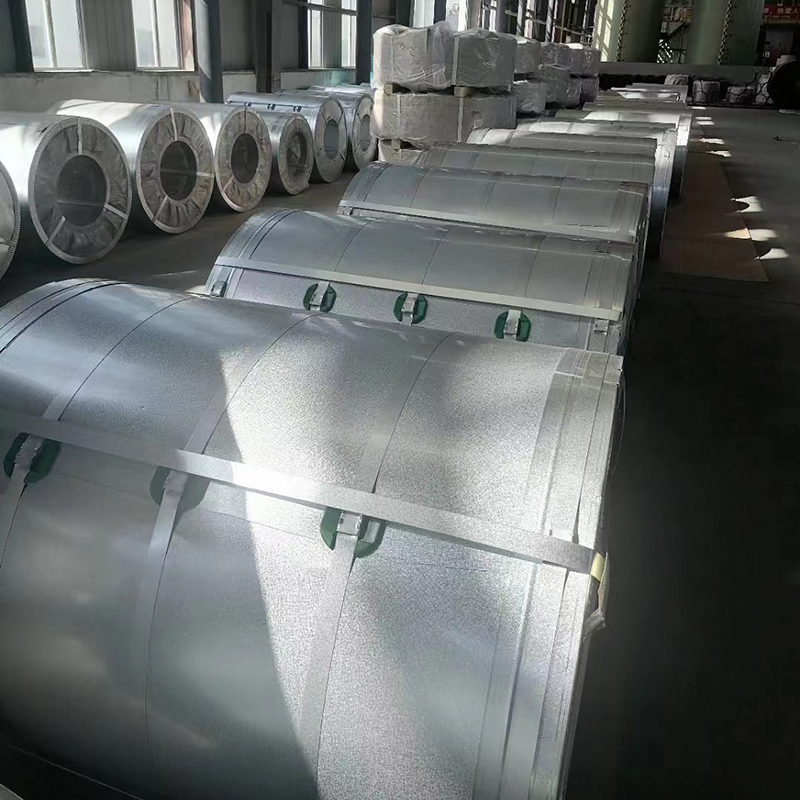

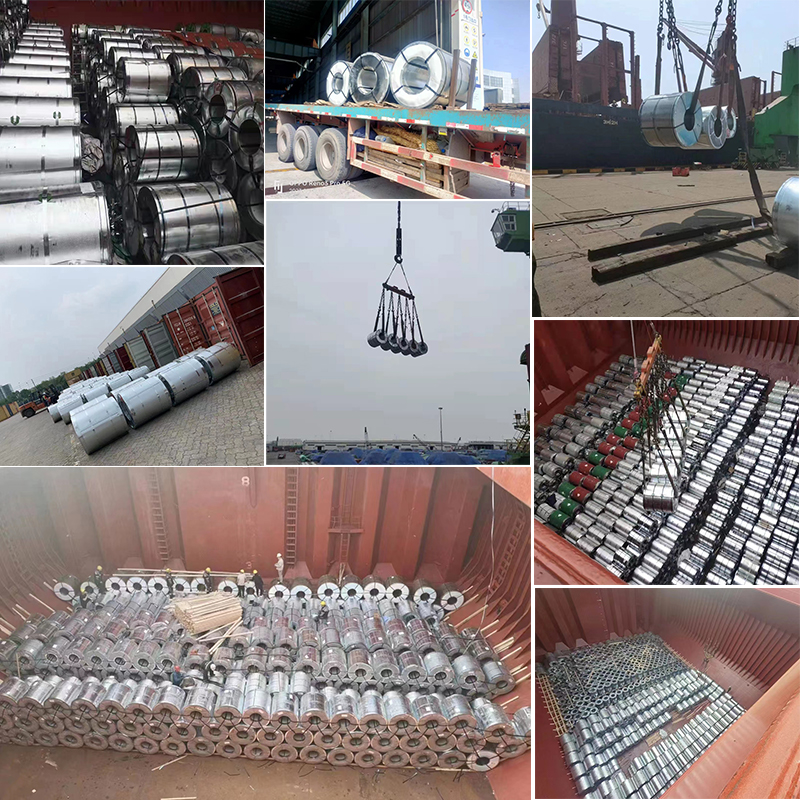

Packing & Delivery
1.Generally package:Anti-water paper+strapped with min three strapping strips.
2.Standard exporting package: Anti-water paper and plastic+covered by iron sheet+ strapped withmin three strapping strips.
3.Excellent package:Anti-water paper and plastic film+ covered by iron sheet+ strapped with minthree strapping strips+fixed on the iron or wooden pallets by strapping strips.
Can be packaged according to customer requirements.
Customer Feedback
FAQ
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected byRUNHAIpiece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, you could place an order with trade assurance which could secure your payment.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,theFacebook,Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
